The differential pressure sensor Delta-P is made by Sensata Technologies in large quantities to monitor the ash content and soot loading of diesel particulate filters. It is applied in many diesel vehicles .With this special variant we target markets like filter retro-fit, Off-Road, CHP, stationary engines, etc.

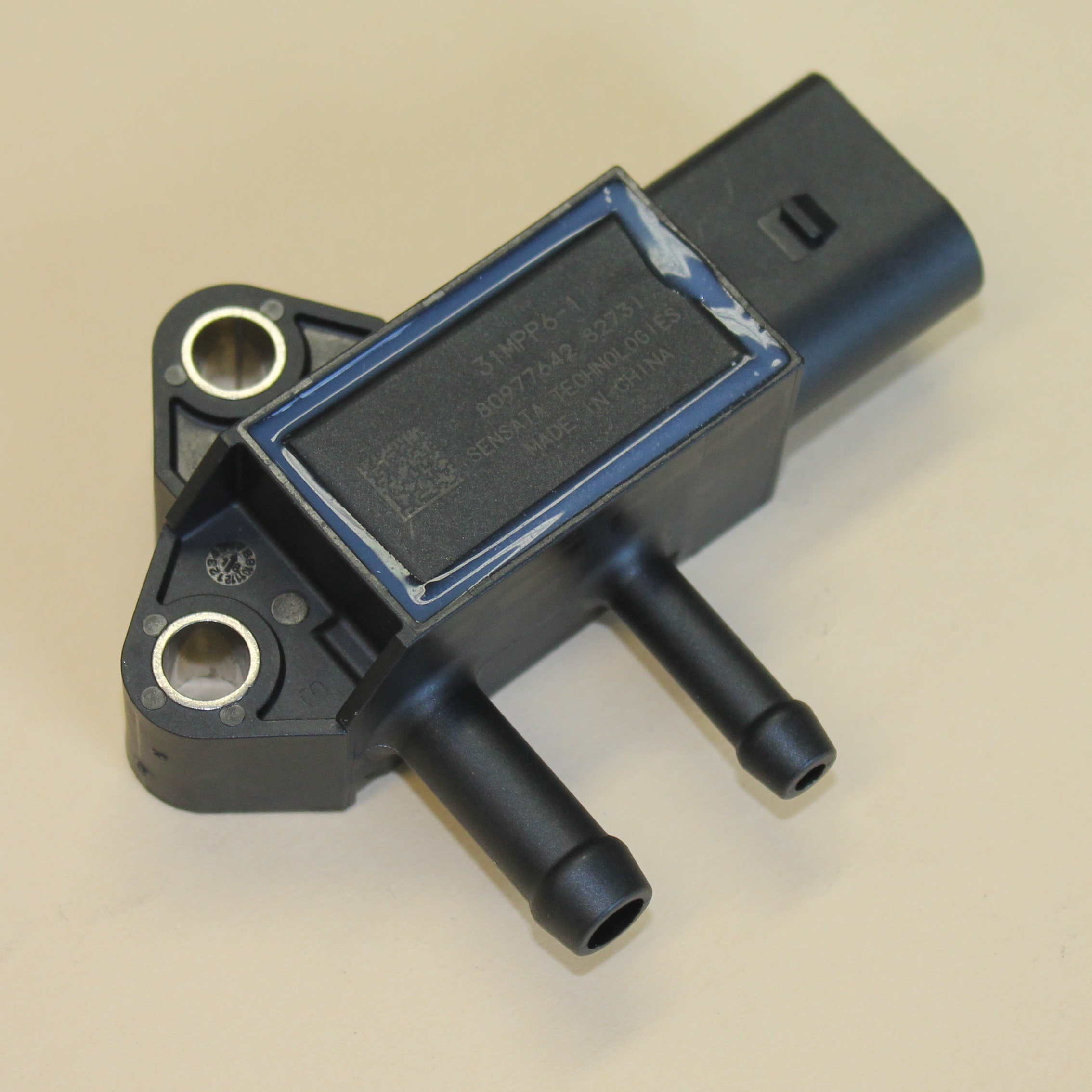

60105 differential pressure sensor 100 kPa. small1

installation instruction differential pressure sensor 60105 (PDF)

drawing 60105 (PDF)

Type

differential pressure sensor Delta-P





pressure measuring range (p1…p2)

0…100 kPa (60105)

operating temperature

-30 °C…+135 °C /-22°F…275°F

energy consumption

10 mA max.

output

 0…5 V DC

power supply

5 V DC stabilized

response time Ƭ 90

< 1 ms

max. storage temperature

 -30°C...+140 °C /-22°F…284°F

max. tolerable pressure difference

 +/- 200 kPa

differential burst pressure

300 kPa

load resistor

5000 ohms Pull up

order code sensor

60105e

order code connector parts

60103e

order code tubes

60102e
